Illustrated Encyclopedia of Human Anatomic Variation: Opus II: Cardiovascular System
Ronald A. Bergman, PhD
Adel K. Afifi, MD, MS
Ryosuke Miyauchi, MD
Peer Review Status: Internally Peer Reviewed

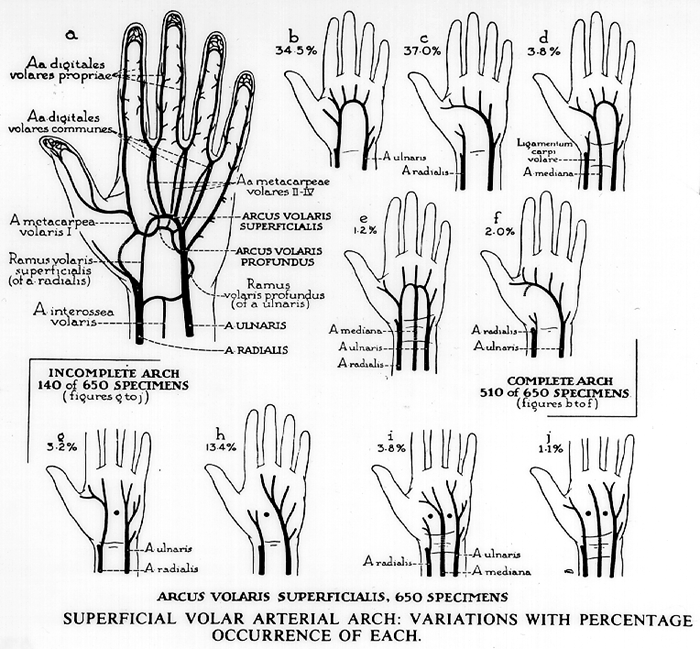

"Types of superficial volar arterial arch (b to j) encountered in 650 dissections of the hand, together with the "textbook normal" (a). Shown schematically, with the percentage occurrence of each of the nine types. Variations (b to f) encountered in 510 specimens in which the arch was complete; patterns (g to j) found in the 140 hands in which the arch was incomplete - in the areas indicated by marker.
a: The standard, and regularly pictured, pattern of superficial arterial arch with its branches at metacarpal and phalangeal levels - the common and the proper volar digital arteries, respectively.
b: The schematized form of the complete radioulnar communication present in slightly more than one-third of the total number of extremities studied.
c: A transpalmar arciform continuation of the ulnar artery with a full complement of common volar digital branches. This type occurs more frequently, 37% of cases, than the traditional or "standard" type.
d: An arciform arrangement to which the contributors are ulnar and median arteries - the median artery replacing the radial of the type shown in a and b. The ulnomedian type initiates the series of patterns whose frequencies of occurrence show a sharp decline from the most common varieties; namely, those depicted in b and c.
e: An arch to which the three arteries contribute. Here a median communication is sent to the center of the arch formed by anastomosis of the radial and ulnar arteries.
f: In this type a transpalmar continuation of the ulnar artery (compare with c) receives a midpalmar contribution from the deep palmar arterial arch, not from the radial artery itself. In the remaining specimens, 140 out of a total of 650 (21.5%), the superficial arterial arch is incomplete, the area of interruption indicated in each diagram by a black dot.
g: In specimens of this type, the proper volar arteries are derived equally from the radial and ulnar arteries, without communication across the middle line of the hand.
h: Here the ulnar artery is the chief contributor to the set of digital vessels, supplying three and one half digits; that is, toward the thumb, to include the ulnar aspect of the index finger.
i: In specimens of this type the median artery reaches the hand to furnish digital arteries (compare with d and e) but without anastomosing the radial and ulnar arteries. Inclining toward the radial side of the hand, the median artery gives off a branch to the thumb.
j: In this variety of palmar arterial supply, the deviation of the three source-vessels toward the radial side of the hand is of lesser degree than in the preceding type; the branches of the common digital artery derived from the median artery pass only to the facing aspects of the index and middle fingers, the radial and ulnar arteries caring for the areas marginal thereto."
From Coleman, S.S. and B.J. Anson. Arterial patterns in the hand based upon a study of 650 specimens. Surg. Gynecol. Obstet. 113:409424, 1961.
