Anatomy Atlases: Atlas of Human Anatomy: Plate 11: Figure 5

Atlas of Human Anatomy

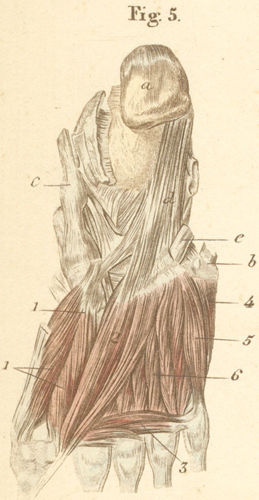

The deep muscle layer of the sole of the right foot.

Translated by: Ronald A. Bergman, PhD and Adel K. Afifi, MD, MS
Peer Review Status: Internally Peer Reviewed


Magnified View (via Quicktime VR)

11-5

a) Calcaneal tuberosity.
b) Metatarsal bone V, tuberosity.
c) Navicular bone, tuberosity.
d) Calcanealcubital ligament.
e) Tendon m. peroneus longus.

  1. m. flexor hallucis brevis.
  2. m. adductor hallucis.
  3. m. tranversus pedis.
  4. m. abductor digiti minimi.
  5. m. flexor digiti V (minimi) brevis.
  6. mm. dorsal interosseus pedis.
