Illustrated Encyclopedia of Human Anatomic Variation: Opus II: Cardiovascular System
Ronald A. Bergman, PhD
Adel K. Afifi, MD, MS
Ryosuke Miyauchi, MD
Peer Review Status: Internally Peer Reviewed

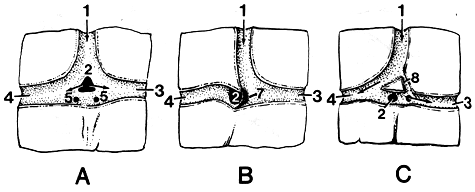

1, Superior sagittal sinus; 2, right straight sinus; 3, right transverse sinus; 4, left transverse sinus; 5, occipital sinus; 7 fibrous partition; 8, small anastomotic branch from superior sagittal sinus which empties into the right transverse sinus.
A: Confluens of the dural venous sinuses.
B: The superior sagittal ends in the right transverse sinus. The straight sinus empties into the left transverse sinus.
C: The superior sagittal sinus continues in large measure into the left transverse sinus. A small branch from the superior sagittal sinus empties into the right transverse sinus as does some of the drainage from the straight sinus.
Redrawn after Dumont, in Latarjet, A. Testut, L. Traitd d'Anatomie Humaine, G. Doin & Cie., Paris, 1929.
