Anatomy Atlases: Atlas of Human Anatomy in Cross Section: Section 1. Head and Neck

Atlas of Human Anatomy in Cross Section: Section 1. Head and Neck

Plate 1.9

Ronald A. Bergman, Ph.D., Adel K. Afifi, M.D., Jean J. Jew, M.D., and Paul C. Reimann, B.S.
Peer Review Status: Externally Peer Reviewed


Plate 1.9

Upper Left Quadrant

Lower Left Quadrant

Lower Right Quadrant

Upper Right Quadrant

1. Pericallosal br. of anterior cerebral a.
2. Corpus callosum, forceps minor
3. Anterior thalamic nucleus
4. Anterior limb of internal capsule
5. Genu of internal capsule
6. Internal medullary lamina
7. Putamen
8. Ventral lateral thalamic nucleus
9. Insula cortex (island of Reil)
10. Lateral (sylvian) fissure
11. Stria medullaris thalami

12. Br. of middle cerebral a.
13. Fimbria of fornix
14. Pulvinar nucleus of thalamus
15. Trigone of lateral ventricle
16. Optic radiation (geniculocalcarine tract)
17. Straight sinus
18. Striate (primary visual) cortex

19. Internal cerebral v.
20. Hippocampus
21. Alveus
22. Choroid plexus in lateral ventricle
23. Temporal operculum (superior temporal gyrus)
24. Transverse gyrus of Heschl

25. Claustrum
26. Parietal operculum
27. Central (rolandic) sulcus
28. Posterior limb of internal capsule
29. Dorsomedial nucleus of thalamus
30. Head of caudate nucleus
31. Frontal (anterior) horn of lateral ventricle
32. Fornix
33. Septum pellucidum
34. Cingulate gyrus
35. Callosomarginal br. of anterior cerebral a.
36. Superior sagittal sinus

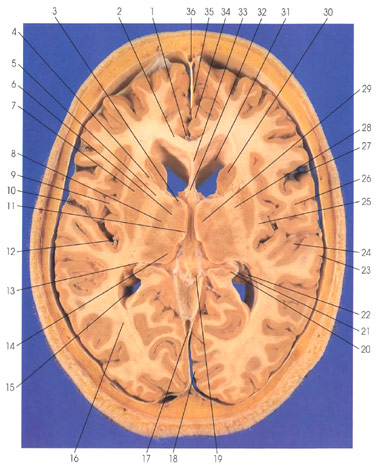

This is a section through the thalamus and basal ganglia. The two hemispheres are connected via the corpus callosum (2). Rostral and dorsal to the corpus callosum (2) on the medial surface of the hemisphere is the cingulate gyrus (34). In the interhemispheric fissure rostrally are pericallosal (1) and callosomarginal (35) branches of the anterior cerebral artery. Within the dural folds are seen two venous sinuses, a superficial superior sagittal sinus (36) and a deep straight sinus (17). The internal cerebral vein (19) is seen. The two frontal (anterior) horns of the lateral ventricle (31) are separated by the septum pellucidum (33). Ventral to the septum pellucidum (33) is the fornix (32). In the lateral wall of the frontal (anterior) horn of the lateral ventricle (31) is the head of the caudate nucleus (30). Ventral and lateral to the caudate nucleus (30) is the putamen (7). The caudate and putamen together form the striatum of the basal ganglia. The anterior limb of the internal capsule (4) separates the head of the caudate nucleus (30) from the putamen (7). The anterior limb of the internal capsule (4) is continuous with the genu (5) and the posterior limb (28) of the internal capsule. The internal capsule (4, 5, 28) contains corticofugal and corticopetal fibers. The posterior limb of the internal capsule (28) separates the putamen (7) from the thalamus. Within the thalamus, the following thalamic nuclei are seen: dorsomedial (29), ventral lateral (8), pulvinar (14), and anterior (3). The internal medullary lamina (6) separates the dorsomedial thalamic nucleus (29) from the ventral lateral thalamic nucleus (8). The internal medullary lamina (6) splits rostrally to enclose the anterior thalamic nucleus (3). The stria medullaris thalami (11) is seen coursing along the boundary of the thalamus. Lateral to the putamen is a slender band of gray matter, the claustrum (25). The choroid plexus (22) is seen within the trigone of the lateral ventricle (15). The hippocampus (20) bulges into the lateral ventricle (15). The alveus (21), representing axons of projection hippocampal neurons, is continuous with the fimbria of the fornix (13).

The central (rolandic) sulcus (27) separates the frontal and parietal lobes. The lateral (sylvian) fissure (10) separates the frontal, temporal, and parietal lobes. Branches of the middle cerebral artery (12) are seen within the lateral (sylvian) fissure (10). In the depth of the lateral fissure (10) is the insula (island of Reil) (9). On the lateral surface of the hemisphere, the parietal (26) and temporal (23) opercula cover the lateral (sylvian) fissure (10). The superior temporal gyrus (23) is continuous with the transverse gyrus of Heschl (24), the primary auditory cortex. In the posterior part of the hemisphere, the optic radiation (geniculocalcarine tract) (16) is seen coursing in the white matter to reach the striate (primary visual) cortex (18) on the medial surface of the occipital lobe.
